10-60V to 5V DC/DC Buck Converter, 12/24/36/48/60V 5V3A 15W Waterproof Step Down Voltage Regulator with Fuse Protection for Electronics, IoT Devices, LED Lights & Industrial Automation

10-60V to 5V 3A 15W DC Voltage Converter Product parametersInput range: 10-60VRated input voltage: 12V/24V/36V/48V/60Vtransfer efficiency: 95%input line: 15-16CM (R+ B-)output voltage: 5Voutput: 3A MAXMaximum output: 15W MAXNo-load adjustment rate: 2%load regulation: 3%idle dissipation: ≤15MAripple wave: 300mVP-PVerification of environmental conditionsA. Unless otherwise specified, the tests in this specification shall be conducted under the standard atmospheric conditions testedB. temperature: 15℃~35℃.C. Relative humidity: 45%~75%.D. The instrument accuracy of the measured voltage shall not be less than 0.5 levels and the internal resistance shall not be less than 10 KΩ/V.E. The instrument accuracy of measured current shall not be less than 0.5 level.F. The accuracy of the instrument used for temperature measurement shall not be less than ± 1℃.SAFETY TESTINGDo not use the device near a heat source (such as a fire or heater).Do not connect the input line to 220V electricity.Do not put the product in fire or heat it.Do not short the positive and negative poles of the product with wires or other metal objects.It is forbidden for non-professional personnel to disassemble and repair the product by themselves.

• 10-60V to 5V DC Voltage Transformer：Input range:10V to 60V; output voltage : 5V(fixed output) output current : 3A output power : 15W (MAX). Be sure to insulate the wire 0.4 inches (10 mm or so) and insert it into the plug when installing.
• Heat Dissipation Performance：The 10-60V to 5V voltage regulator has IP67 waterproof classification, compact aluminum housing, epoxy resin potting, 100% waterproof, dustproof, shockproof, better heat dissipation performance.

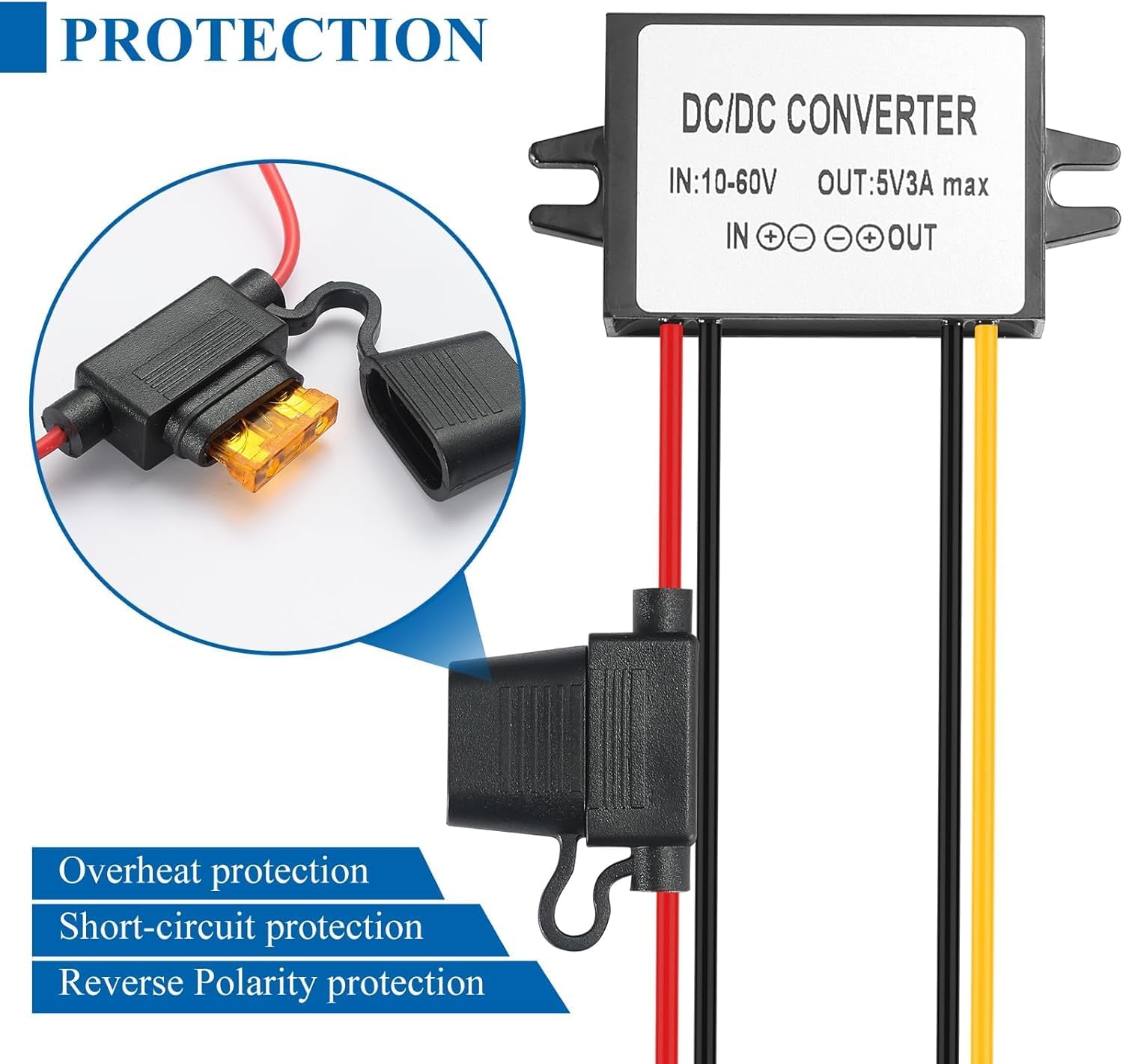

• Intelligent Protection：Assembled with smart chip, equipped with intelligent overcurrent/overload/low load/short circuit/overheat protection by using the 10-60V to 5V power transfomer voltage.
• Widely Application：The 10-60V to 5V DC voltage converter is widely used in the fields of automotive, photovoltaics, industrial plants, motor vehicles, boats, agricultural machinery, camping, mobile structures, hobby and DIY etc.
• Please Note：The load connected to the transformer converter output should not exceed the specified maximum load. (Any greater load will damage the buck converter).The 10-60V to 5V DC power converter adapter does NOT have input reverse protection, pay attention to the input correct, negative reverse, will lead to permanent damage to the product.
