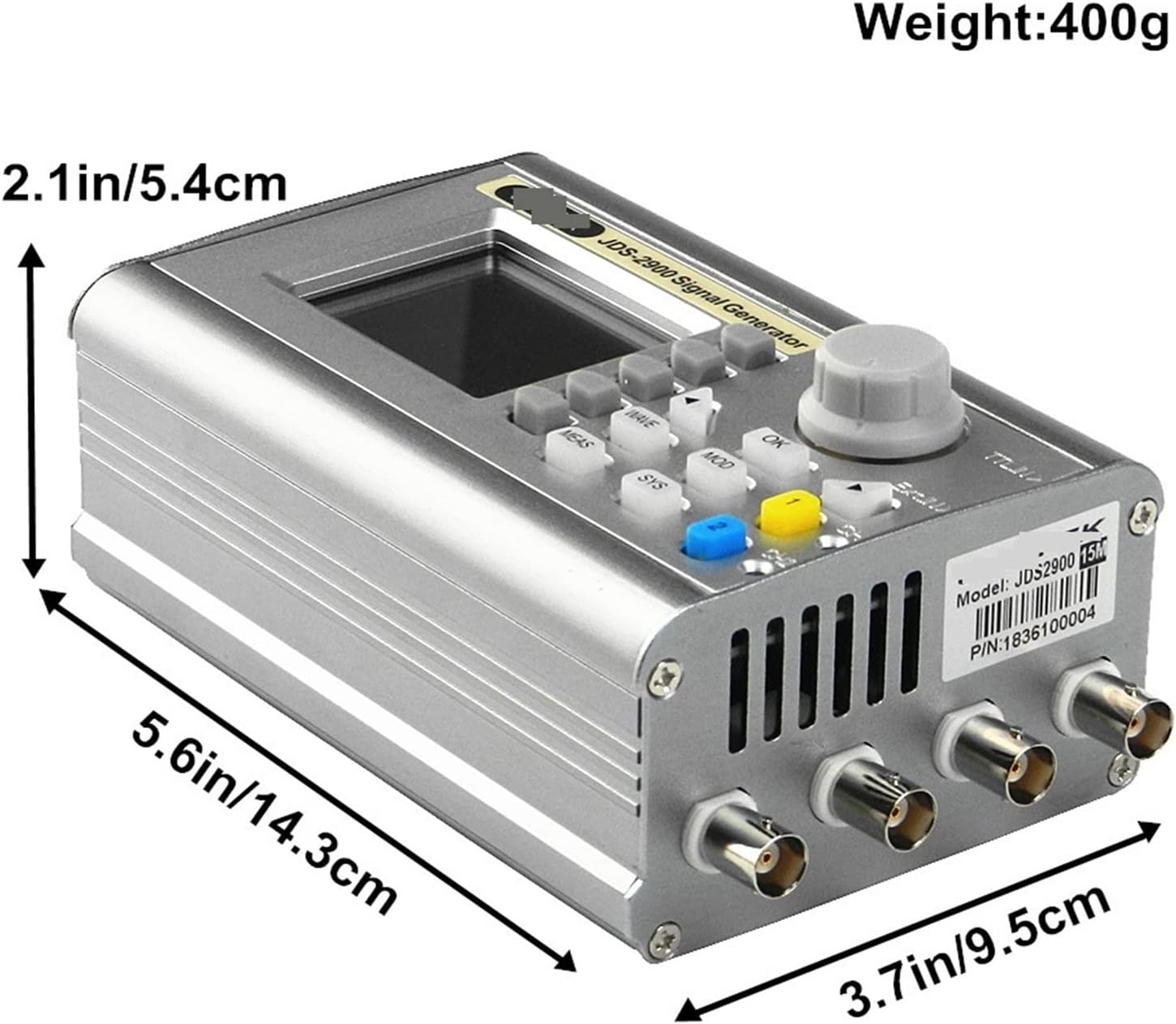

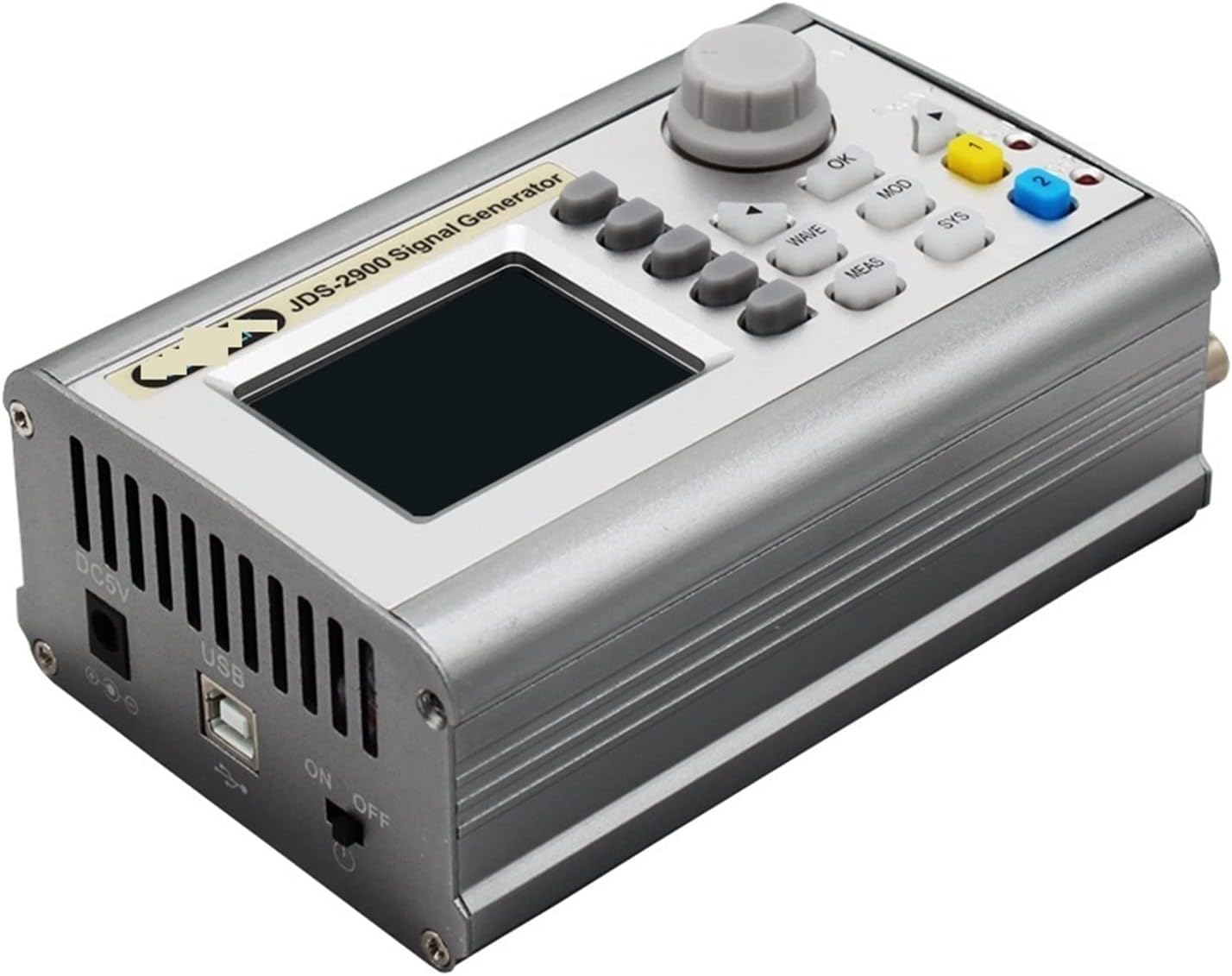

Digital Tester 15MHzz DDS Function Signal Generator CNC Dual-Channel Frequency Counter Arbitrary Waveform Generator

JDS2900-15MSine wave frequency range：0~15MHzSquare wave frequency range Triangle wave frequency range：0~15MHzPulse wave frequency range TTL digital wave frequency range Arbitrary frequency range：0~6MHzPulse width adjustment range：100nS~4000SSquare wave rise time：≤25nsMinimum frequency resolution：0.01uHz（0.00000001Hz）Frequency accuracy：±20ppmFrequency stability：±1ppm/3hoursWaveform characteristicsWaveform type：SineSquare、pulse (adjustable duty cycle, precise adjustment of pulse width and period), triangular wave, partial sine wave, CMOS wave, DC level (set DC amplitude by adjusting offset), half wave, full Wave, positive staircase wave, anti-ladder wave, noise wave, exponential rise, exponential drop, multisonic wave, Symplectic pulse and Lorenz pulseand 60 arbitrarywave forms.Wave length：2048 pointsWaveformsampling rate：266MSa/sWaveform vertical resolution：14-bitsSquare wave and pulse wave Overshoot ≤5%Pulse wave Duty cycle adjustment range 0.1%~99.9%Partial sine wave Duty cycle adjustment range 0.1%~99.9%Sine wave Harmonic Suppression Total harmonic distortion≥45dBc(<;1MHz); ≥40dBc(1MHz~20MHz)<;1%(20Hz~20kHz,0dBm)Saw-tooth wave Linearity ≥98%(0.01Hz~10kHz)

• ►320*240 2.4" TFT color LCD display, simultaneously display parameters of CH1 and CH2.
• ►Can reproduce patterns of custom waveform.
• ►Use soft silicone keys with high sensitivity and convenient for operation.
• ►Completely independent dual channels output, synchronizing operation
• ►60 groups of arbitrary wave storage function, memory depth of each group is 2048*14bits.
